'select_one' within nested repeat is wrongly shown more than once

I have a form in Enketo with two repeat groups, one after the other. Then I create a third repeat group with a nested one to get the combinations of the two former repeats. For example, if the first repeat n=3 and contents could be 100, 200 and 300 and the second repeat group is n= 2 and contents A and B; the third repeat group with nested repeat would have 2 x 3 = 6 elements corresponding to 100A, 200A, 300A, 100B, 200B and 300B.

In the nested repeat I have placed two questions: one type ‘text’ and one type ‘select_one’.

Problem: I observer that the ‘select_one’ question appears more than once in the same repeat node (which, does not happen, as expected, with the ‘text’ question).

I could address the problem with any of these:

  1. either selecting other appearance for ‘select_one’ than ‘minimal’ (e.g. ‘horizontal’); or
  2. removing all ‘relevance’ conditions; or
  3. using Kobocollect, where it appears as expected together with the ‘text’ question.

Any insight?

Community_nestedR_select.xlsx (12.4 KB)

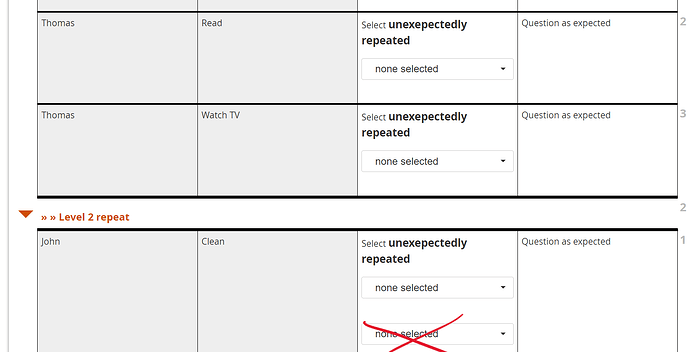

Screenshoot of the problem:

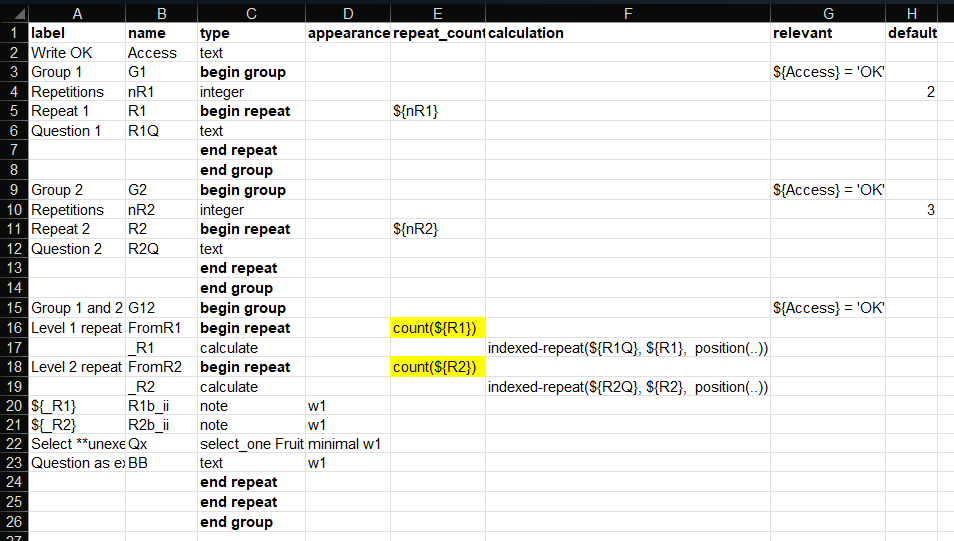

@xbc, seems like you are referencing a wrong reference under the repeat count for the cells E16 and E18 as shown in the image below:

Many thanks for your kind reply.
Can you elaborate why they are wrong?
My intention was that the repeat in row 16 to go as many times as R1, and the repeat in row 18 as R2.
