Skip logic behaving strangely

Hi Folks,

I have used skip logic without issues previously, but in my current form it behaves strangely. My problem is that I often have to “answer” multiple questions before it behaves oddly, but sometimes it behaves strangely when I answer the very first question. I get the errors in the Form Preview Window, as well as if I reply the form.

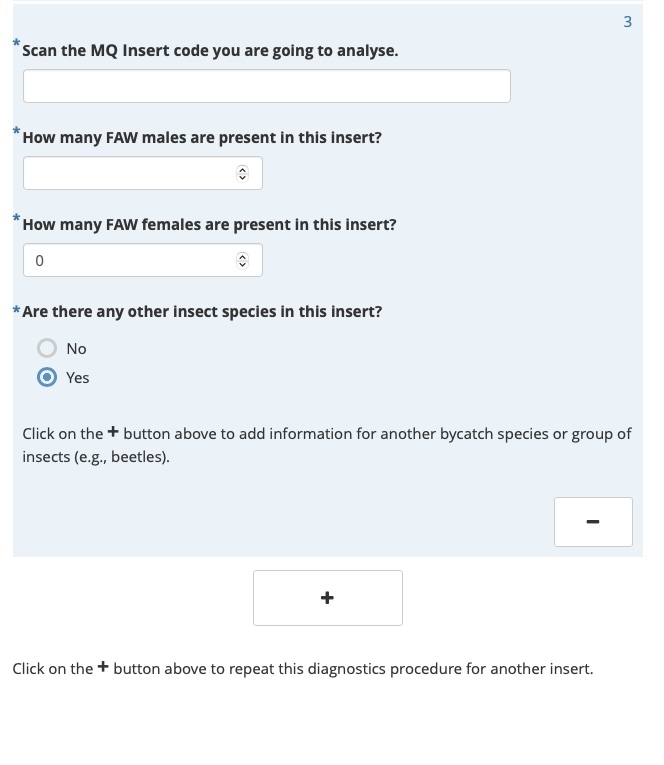

In the 1st screen grab (Diagnostics 1), everything works correctly. In the 2nd one (Diagnostics 2) I shouldn’t get the white window for “Another bycatch species” because I have selected No in the previous question. If I then try to add information for a new insert, and select Yes for “Are there any other species…”, I don’t get the loop I want that allows me to enter this data - all I can do is opt to enter data fro a new insert (Diagnostics 3), instead of getting the same options as in Diagnostics 1.

I have also attached my xls form, in case this helps. I hope someone can let me know what I have done wrong to get these issues.

Many thanks,
Tania




Diagnostics Test.xlsx (10.9 KB)

Hints:
- You may have a look here for your form structure: Form Logic - ODK Docs
- A relevance for any end (type) line doesn’t make sense.

1 Like

@taniak, when looking at your XLSForm, I see that you have already applied a skip logic to a repeat group at cell G10.

Once it’s applied there, you will not need a separate skip logic from G11 to G13.

@Kal_Lam , you are correct - but removing this redundant skip logics does not solve the problem. I have just removed it from lines 11-13, and I still get the same issue. This time I got the error very quickly in Preview.

I have attached the new xlx form & new screen grabs. I have to say, I cannot work out why this is happenning,
Diagnostics Test.xlsx (11.0 KB)


@taniak, I don’t get the Another bycatch species when I select No … see the image below …

But I do get Another bycatch species when I select Yes … see image below …

Is this what you are expecting?

Hi @Kal_Lam and @taniak I’m also trying to duplicate the issue on my side. ̶I̶t̶ ̶i̶s̶ ̶n̶o̶t̶ ̶c̶o̶n̶s̶i̶s̶t̶e̶n̶t̶, EDIT: It seems consistent now. I think problem occurs when you do the following:

1- Click “Yes” on the “Are there any other insect species in this insert” question.
2- Delete the “Another bycatch species” group of responses by clicking MINUS (-) button.
3- Click “No” on the “Are there any other insect species in this insert” question.
4- Click “Yes” on the “Are there any other insect species in this insert” question again.
5- The PLUS (+) button will not appear to add “Another bycatch species” group of responses.

I think something triggers between steps 3 and 4 which results in not being able to add another group of answers in the second repeat group.

EDIT 2: only tested in Preview mode. Not sure if that changes the behaviour.

1 Like

@Kal_Lam , yes, your images are exactly what I am expecting. For all of my initial tests, this is what I was getting, so I thought it worked. Now, I get the incorrect screens quite regularly.

1 Like

@hakan_cetinkaya @Kal_Lam - thanks for testing. Yes, the problem is that the results are inconsistent. In the examples I sent above, I did not try to make any corrections, as per your suggestions.

Like you, I am testing in Preview. I have in fact deployed a similar form, and it was the enumerators who let me know there was a problem, so I created this test form to see if I could work out what the problem is. I have failed to do so. And in Preview, sometimes I get the correct screen several times before the error shows up. this is what is puzzling - that sometimes it works, and sometimes it doesn’t.

The enumerators that have problems are using Enketo/webforms, and I have managed to get the same issues when I test it on my iPhone (Enketo/webform). I will have to test on an Android (using the KoboCollect app) to see if I still get the issue. Seems odd that the different platforms will behave differently, but then again, maybe not so strange?!

1 Like

@taniak, I don’t have any issues when testing it at my end except what @hakan_cetinkaya has outlined.

@Kal_Lam , may I ask what platform you are testing it on, or if you are also in Preview? It initially took me multiple goes on Enketo to get the result (i.e., I got the correct result a number of times until I finally had the error; now I get it regularly.

FWIW, this is probably the same issue that was raised (subsequently) here: Repeat within a repeat - #4 by Xiphware .

As noted, this is a recognized issue in Enketo resulting from nested repeats, particularly when the nested one has a relevance condition (aka skip logic) associated with it. Please refer to above for potential workarounds.

1 Like

Hi Gareth,

Yes, correct, this was my original post. Unfortunately for me, nested repeats seem to be necessary in some of my forms. Where possible, I have learned to avoid them. For this project, the problem was resolved by sending out android tablets set ups with KoboCollect. For the other project that you refer to, all enumerators use their iPhones in the field, so I have to use Enketo :unamused_face: .

Cheers, Tania
